Thermal Camera Installation in Abu Dhabi for Businesses
SOLO SOFT Solutions provides professional thermal camera installation in Abu Dhabi for commercial and industrial properties. From thermal camera selection and installation to system configuration and maintenance, we help businesses choose surveillance solutions suited to their monitoring requirements. Based in Musaffah M-39, Abu Dhabi, we support local businesses with practical thermal security camera solutions.
Looking for a thermal camera system for your property?
Discuss your installation requirements with our team and request a project quotation.

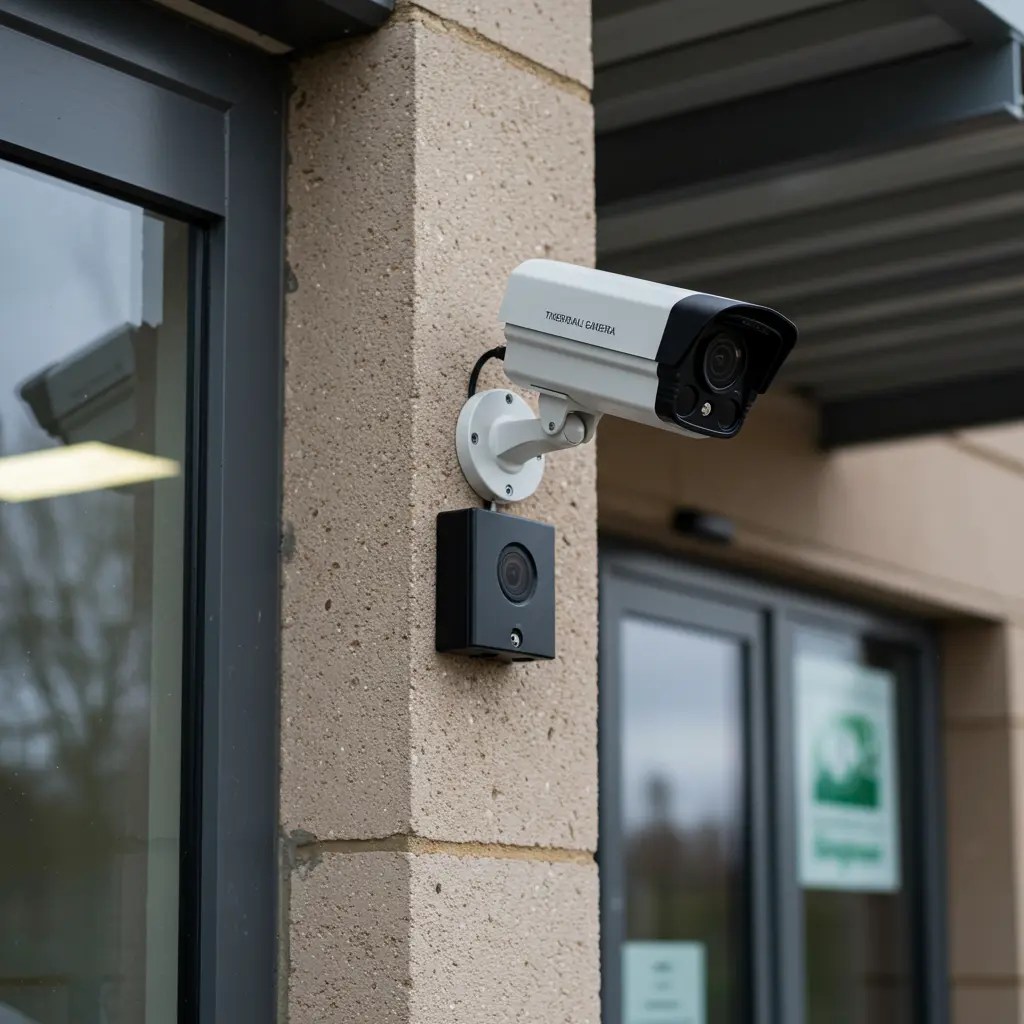

Professional Thermal Camera Installation Services in Abu Dhabi
Thermal cameras help businesses monitor areas where conventional visible-light cameras may not provide sufficient detection under certain lighting or environmental conditions. They create images from infrared radiation, allowing operators to observe heat patterns from people, vehicles and other objects.
SOLO SOFT Solutions provides thermal camera installation and maintenance services for businesses looking to improve perimeter monitoring, protect selected areas and assess specific industrial monitoring requirements.
Our services include:
- Fixed thermal security camera installation.
- Thermal camera selection and placement.
- Thermal PTZ camera deployment.
- Compatible bi-spectrum camera configurations.
- Camera network and power configuration.
- Thermal imaging system testing.
- Integration with compatible recording and security systems.
- Maintenance and technical support.
The appropriate installation depends on the property, monitoring objective, camera specifications and available infrastructure.

What Is a Thermal Security Camera and How Does It Work?
A thermal security camera detects infrared radiation emitted by objects and converts differences in thermal energy into a visual image. Unlike conventional CCTV cameras, which capture reflected visible or near-infrared light, thermal cameras create images based on temperature contrast rather than visible illumination.
This allows them to detect people, vehicles and other objects in complete darkness, making them useful for outdoor perimeter protection, restricted areas and selected industrial environments.
For example, a business can use a suitable fixed thermal camera to monitor movement near a warehouse boundary during nighttime hours without depending on conventional lighting.
Can Thermal Cameras Detect People in Complete Darkness?
Yes. Thermal cameras detect infrared radiation emitted by people and other objects, so they do not require visible light to produce thermal images.
However, detecting a person is different from identifying their face. Thermal images generally provide heat-based information rather than the detailed facial features available from conventional optical cameras.
Where visual identification is important, a combined thermal and visible-light camera system may be more appropriate.
Types of Thermal Cameras We Help Businesses Select
Choosing a thermal camera requires understanding the purpose of the monitoring system. A camera designed for perimeter intrusion detection may not be appropriate for measuring the surface temperature of industrial equipment.
Fixed Thermal Security Cameras
Fixed thermal cameras monitor a designated area from a stationary position. They are commonly considered for building perimeters, warehouse boundaries, outdoor equipment areas and restricted access points.
Camera placement, lens selection, thermal resolution and field of view should be assessed to determine whether the selected model provides sufficient coverage.
Thermal PTZ Cameras
Thermal Pan-Tilt-Zoom cameras allow operators to adjust the viewing direction remotely, depending on the model.
They can be useful for monitoring larger outdoor areas where security personnel need to change the camera’s viewing position. Selected systems can also integrate thermal detection with a visible-light camera for additional visual verification.
Bi-Spectrum Thermal Cameras
Bi-spectrum cameras combine thermal imaging with conventional visible-light imaging in one system.
The thermal channel helps detect heat patterns, while the optical channel provides additional visual detail. This combination can be useful for sites where operators need to identify the context of a detected event.
Radiometric Thermal Cameras
Radiometric thermal cameras are designed to measure surface temperatures rather than simply display heat patterns.
Depending on the selected device, they can support defined temperature ranges, measurement areas and configurable temperature alerts.
These systems may be considered for monitoring electrical equipment, machinery and other assets where abnormal temperature changes require attention.
Temperature measurement depends on camera specifications, distance, lens, viewing angle, surface material and emissivity settings. The correct model must be selected for the intended measurement task.
Thermal Camera Comparison: Which System Is Right for Your Property?
Different thermal camera configurations serve different business requirements. The following comparison helps explain where each option may be useful.
| Camera Type | Suitable Application | Main Capability |
|---|---|---|
| Fixed Thermal Camera | Warehouse boundaries and outdoor perimeters | Stationary heat-based detection |
| Thermal PTZ Camera | Large industrial and commercial areas | Adjustable remote viewing |
| Bi-Spectrum Camera | Commercial properties and monitored entrances | Thermal and visible imaging |
| Radiometric Camera | Industrial equipment and electrical monitoring | Surface-temperature measurement |
| Certified Thermal Camera | Applicable hazardous industrial locations | Monitoring with required hazardous-area protection |
The best option depends on the monitored target, required detection distance, environment and available system infrastructure.
What Is the Difference Between Thermal Resolution and Lens Selection?
Thermal resolution determines how many pixels are available to represent the thermal scene. Lens focal length affects the field of view and how much image detail is available at a particular distance.
A narrow field of view may be suitable for monitoring a specific distant target, while a wider field of view may cover a larger nearby area.
During camera selection, we consider:
- Thermal sensor resolution.
- Lens focal length.
- Field of view.
- Target dimensions.
- Required detection distance.
- Environmental conditions.
- Available camera mounting positions.
The objective is to match the equipment to the actual surveillance requirement rather than choosing a camera based only on advertised detection distance.
Thermal Camera vs Traditional CCTV: What Is the Difference?
Thermal cameras and conventional CCTV systems serve different purposes. Understanding their differences helps businesses decide whether they need one technology or a combination.
| Feature | Traditional CCTV | Thermal Camera | Bi-Spectrum Camera |
|---|---|---|---|
| Imaging technology | Visible or near-infrared light | Infrared thermal radiation | Thermal and visible light |
| Complete darkness | Depends on available illumination and IR capability | Detects without visible illumination | Thermal channel works without visible illumination |
| Heat-pattern detection | Not its primary function | Yes | Yes |
| Facial detail | Better suited | Generally limited | Available through visible channel |
| Temperature measurement | Not generally available | Supported by radiometric models | Supported by compatible models |
| Perimeter monitoring | Yes | Yes | Yes |
| Visual verification | Yes | Limited | Yes, through optical imaging |
Should You Install Thermal Cameras Instead of Traditional CCTV?
Not necessarily. Thermal cameras are particularly useful for heat-based detection and monitoring in areas where visible-light imaging may be limited.
Traditional CCTV remains valuable when detailed visual footage is required.
For businesses that need both detection and visual verification, combining thermal cameras with conventional cameras or selecting a compatible bi-spectrum system may provide a more suitable solution.
Thermal Camera Installation for Perimeter Protection
Outdoor perimeter monitoring is one of the important applications of thermal security cameras.
Large commercial and industrial properties may have boundary walls, storage yards, loading areas and access points that require monitoring after normal working hours.
A properly selected thermal camera can help security personnel detect people or vehicles entering a defined monitoring area.

How Thermal Perimeter Protection Works
A typical thermal surveillance setup may include:
- Fixed thermal cameras positioned around selected boundaries.
- Configured intrusion-detection zones.
- Compatible video analytics.
- Event-based recording.
- Alerts sent to authorized monitoring personnel.
- Integration with visible cameras for additional verification, where supported.
For example, a warehouse in an industrial area of Abu Dhabi may require thermal monitoring along a rear boundary where installing permanent lighting is not practical.
Camera selection should consider the distance between the camera and the monitored area, the size of the expected target and the thermal image detail required by the application.
Can Thermal Cameras Reduce False Security Alerts?
Selected thermal cameras support video analytics that classify people and vehicles and detect configured intrusion events.
These functions can help reduce unwanted alerts caused by some environmental movement or non-target objects. Actual performance depends on the camera model, analytics settings, scene conditions and correct installation.
Industrial Thermal Camera Installation and Temperature Monitoring
Industrial facilities often need to monitor more than unauthorized movement. They may also need visibility into equipment conditions and abnormal surface-temperature changes.
A suitable radiometric thermal camera can help monitor selected assets and identify temperatures that exceed configured thresholds.

Electrical Panels and Power Equipment
Electrical connections and components can develop abnormal heat because of issues such as loose connections, excessive loading or deteriorating components.
Compatible radiometric thermal cameras can monitor selected equipment surfaces and generate alerts when configured temperature thresholds are exceeded.
Camera positioning and measurement settings must be planned around the equipment layout, surface properties and required measurement accuracy.
Motors, Generators and Industrial Machinery
Industrial motors, generators and machinery may produce temperature patterns that change during operation.
Continuous monitoring of selected equipment can help maintenance teams become aware of temperature changes and investigate potential issues.
Thermal monitoring is a supporting condition-monitoring tool. It does not replace a full engineering inspection or establish the exact cause of a mechanical fault.
Warehouses and Storage Facilities
Thermal security cameras can support perimeter monitoring around warehouses, loading bays and selected outdoor storage areas.
Where compatible radiometric devices are used for hotspot monitoring, temperature alerts can also help identify unusual heating conditions in designated locations.
A standard thermal security camera should not automatically be treated as an approved fire detection or fire alarm system.
Oil, Gas and Industrial Facilities
Industrial sites may require a combination of perimeter protection, equipment monitoring and specialized security infrastructure.
Thermal cameras can be considered for designated monitoring zones, but equipment selection must reflect the actual environmental and operational requirements.
For hazardous locations, the selected camera and installation accessories must carry the applicable certification for the specific hazardous-area classification. Ordinary outdoor weatherproofing is not a substitute for ATEX or IECEx certification.
Thermal Camera Installation Considerations for Abu Dhabi
Thermal camera installation in Abu Dhabi requires attention to the local environment, property layout and operating conditions.
Outdoor installations may be exposed to high ambient temperatures, dust, humidity and direct sunlight. These factors should be considered when selecting camera models, mounting accessories, enclosures and installation positions.

Choosing Thermal Cameras for High Outdoor Temperatures
Every thermal camera has a specified operating temperature range. Before installation, the model’s technical datasheet should be checked against the expected conditions at the site.
Other important considerations include:
- Camera operating temperature.
- Housing and enclosure protection.
- IP rating for dust and water resistance.
- IK rating where impact protection is required.
- Direct sunlight and mounting position.
- Cable and connector protection.
- Lens suitability and maintenance access.
A camera should be selected according to its published environmental specifications rather than assuming that every outdoor camera is suitable for every Abu Dhabi location.
Thermal Camera Installation for Musaffah Industrial Properties
Industrial facilities around Musaffah may have outdoor equipment areas, storage yards, access roads, electrical infrastructure and restricted operational zones.
A thermal camera installation should consider the monitored target, mounting position, operating environment and distance from the camera to the area being monitored.
For a warehouse boundary, the priority may be intrusion detection. For an industrial equipment area, a suitable radiometric solution may be more relevant.
SOLO SOFT Solutions is based in Musaffah M-39, Abu Dhabi, and works with businesses to discuss their security and technical installation requirements.
Our Thermal Camera Installation Process
A thermal surveillance system should be planned before equipment is installed. Camera selection, mounting locations, network infrastructure and recording requirements all influence the finished system.
1. Site Assessment and Monitoring Requirements
We begin by understanding the property, the areas requiring monitoring and the customer’s primary objectives.
This may include perimeter protection, restricted-area surveillance, outdoor monitoring or selected industrial temperature applications.
2. Camera Selection and Coverage Planning
We assess suitable thermal camera configurations based on resolution, lens, field of view, distance and environmental conditions.
The aim is to choose equipment that fits the intended monitoring task.
3. Network and Power Planning
IP thermal cameras require appropriate network connectivity and electrical power.
Where supported, Power over Ethernet (PoE) can supply both power and network connectivity through a single Ethernet cable.
The installation should account for network switch capacity, PoE power budgets, bandwidth and cable routing.
4. Camera Installation and Configuration
The selected cameras are mounted at the planned positions and configured according to the agreed system requirements.
Configuration may include IP settings, device access, image adjustments, compatible analytics and recording settings.
5. Testing and Commissioning
After installation, the system should be checked for device connectivity, thermal image output, configured detection zones, recording and supported alert functions.
Any required adjustments should be made before the system is handed over.
6. Handover and Ongoing Support
The project handover should cover the agreed installation details, system access information and relevant configuration documentation.
Maintenance and technical support arrangements can be discussed according to the equipment and project requirements.
Integration with Existing CCTV and Security Systems
Thermal cameras do not always need to operate as a completely separate surveillance system.
Depending on device and software compatibility, thermal cameras can be integrated into existing security infrastructure.
Potential integration options include:
NVR and VMS: Compatible video management platforms can provide centralized live viewing, recording and event management.
Existing IP Cameras: Thermal and visible-light cameras can work together to provide different types of surveillance information.
Alarm Systems: Supported camera events and alarm inputs or outputs can be integrated into compatible security systems.
Remote Monitoring: Authorized users may be able to view thermal footage through supported software and mobile applications.
Network Infrastructure: PoE switches, IP addressing, bandwidth and network access controls should be considered during system design.
Before adding thermal cameras to an existing installation, compatibility should be assessed across the camera model, recorder, software, firmware and available network resources.
Abu Dhabi Surveillance Requirements and Installation Planning
Businesses planning a thermal camera installation should consider the surveillance requirements that apply to their particular property and industry.
The Abu Dhabi Monitoring and Control Centre (MCC) develops requirements for monitoring and control systems across relevant public and private entities.
Depending on the premises and its classification, businesses may need to consider:
- Applicable surveillance system standards.
- Relevant camera coverage requirements.
- Approved installer or service-provider requirements.
- System design and documentation.
- Recording and footage management.
- Camera positioning and privacy considerations.
- Coordination with property management and relevant authorities.
An important distinction is that installing a thermal camera does not automatically satisfy every prescribed CCTV requirement. Some facilities may require conventional surveillance cameras in addition to specialized thermal equipment.
The applicable requirements should be confirmed before the installation or modification of a regulated surveillance system. Any required approvals or licensed installation responsibilities should be handled by appropriately authorized parties.
Thermal Camera Maintenance and Technical Support in Abu Dhabi
Once a thermal security system is installed, regular maintenance helps businesses keep its equipment and monitoring functions in working condition.
Dust accumulation, physical movement, network changes and software updates can affect system operation over time.
SOLO SOFT Solutions offers thermal camera maintenance and support arrangements according to customer requirements.
What Should Thermal Camera Maintenance Include?
| Maintenance Area | What Needs to Be Checked |
|---|---|
| Camera housing | Physical condition and environmental exposure |
| Thermal lens | Dust, obstruction and image quality |
| Camera positioning | Mounting, direction and coverage |
| Network connection | Device availability and connectivity |
| Recording system | Recording and playback |
| Analytics | Configured detection zones and events |
| Temperature monitoring | Measurement settings and alert thresholds, where supported |
| Firmware | Compatible updates and device software |
| System access | User accounts and permissions |
For radiometric thermal systems, maintenance may also include reviewing the measurement configuration and checking that temperature thresholds remain appropriate for the monitored application.
The maintenance frequency should depend on the operating environment, manufacturer’s guidance and agreed service requirements.
Why Choose SOLO SOFT Solutions for Thermal Camera Installation in Abu Dhabi?
Choosing a thermal camera installation provider involves more than selecting an equipment brand. The camera must suit the property, monitoring objective, installation environment and available infrastructure.
SOLO SOFT Solutions LLC is an Abu Dhabi-based systems integrator providing security, networking and technical installation services.
Based in Musaffah M-39, our team works with businesses and property owners to discuss new installations, existing systems and technical requirements.
When planning a thermal camera project with us, you can discuss:
- The type of thermal surveillance required.
- Suitable camera configurations.
- Installation positions and coverage.
- Network and power requirements.
- Recording and software compatibility.
- Supported system integration.
- Testing and commissioning.
- Ongoing maintenance and technical support.
We also encourage customers to share their site details, existing equipment information, photographs or floor plans where available. This helps establish a clearer installation scope before preparing a quotation.
Need help choosing a thermal surveillance system for your business?
Contact SOLO SOFT Solutions to discuss your requirements.
How Much Does Thermal Camera Installation Cost in Abu Dhabi?
The cost of thermal camera installation depends on the equipment and technical requirements of the project.
A fixed thermal camera for a small monitoring area will have different requirements from a multi-camera industrial perimeter system or a radiometric installation designed to monitor specific equipment.
The main factors affecting installation cost include:
| Cost Factor | How It Affects the Quotation |
|---|---|
| Camera Type | Fixed, PTZ, bi-spectrum or radiometric |
| Thermal Resolution | Available image detail |
| Lens Selection | Field of view and required monitoring distance |
| Number of Cameras | Equipment quantity and installation scope |
| Mounting Requirements | Height, brackets and access equipment |
| Network Infrastructure | Ethernet cabling, switches and PoE |
| Recording and Storage | NVR, VMS and recording requirements |
| Analytics | Compatible software and configured monitoring scenarios |
| Environmental Requirements | Protective housing and certified equipment where necessary |
| Maintenance | Optional ongoing support arrangements |
What Information Is Needed for a Thermal Camera Quotation?
To help us understand your requirements, share:
- Your property location in Abu Dhabi.
- The type of premises, such as an office, warehouse or industrial facility.
- The areas you want to monitor.
- The approximate number of cameras required, if known.
- Whether you need perimeter security or temperature monitoring.
- Details of any existing CCTV or network infrastructure.
- Available site photographs or floor plans.
Our team can review your project information and discuss the appropriate next steps.
Frequently Asked Questions About Thermal Camera Installation in Abu Dhabi
1. What is thermal camera installation?
Thermal camera installation involves selecting, mounting and configuring cameras that detect infrared radiation and display heat patterns. These systems can be used for perimeter security, industrial monitoring and selected temperature-measurement applications, depending on the camera’s capabilities.
2. Can thermal cameras detect people in complete darkness?
Yes. Thermal cameras detect infrared radiation emitted by people and other objects rather than depending on visible light. They can therefore provide thermal images in complete darkness, although thermal footage does not generally offer the facial identification detail of conventional optical cameras.
3. What is the difference between a thermal camera and a bi-spectrum camera?
A thermal camera captures infrared radiation and produces heat-based images. A bi-spectrum camera combines thermal imaging with a visible-light camera, allowing operators to view thermal information alongside additional optical detail.
4. Can thermal cameras detect overheating electrical equipment?
Suitable radiometric thermal cameras can measure surface temperatures and generate alerts when configured limits are exceeded. Correct camera selection, emissivity settings, measurement distance and viewing angle are important for reliable results.
5. How far can a thermal security camera detect?
Detection distance depends on the thermal sensor resolution, lens focal length, target size, temperature contrast, environmental conditions and required detection detail. A camera’s detection range should not be confused with its ability to recognize or identify a target.
6. Are thermal cameras suitable for Abu Dhabi's outdoor environment?
Selected outdoor thermal cameras are designed for demanding environmental conditions. However, operating temperature, dust protection, IP rating, mounting accessories and other manufacturer specifications should be checked before installation.
7. Can thermal cameras be connected to an existing CCTV system?
Potentially, yes. Integration depends on the camera’s supported network protocols, recorder or VMS compatibility, firmware, available channels and network infrastructure. An existing system should be assessed before adding thermal devices.
8. Can thermal cameras detect fire or gas leaks?
Some specialized thermal systems provide configured hotspot or fire-related detection capabilities, but a standard thermal security camera is not automatically an approved fire detection system. Similarly, detecting specific gas leaks requires specialized optical gas imaging equipment rather than an ordinary thermal CCTV camera.
9. What is radiometric thermal imaging?
Radiometric thermal imaging provides temperature measurement information for pixels or defined areas in an image, depending on the camera. It can be used for monitoring the surface temperature of selected assets and identifying unusual temperature changes.
10. Does thermal camera installation require approval in Abu Dhabi?
Requirements depend on the type of premises, its regulatory classification and the applicable surveillance standards. Businesses should confirm the current Abu Dhabi Monitoring and Control Centre requirements and any relevant approval or licensed-installer conditions before starting a regulated installation.
11. Can thermal cameras work alongside conventional CCTV cameras?
Yes. Thermal cameras can complement conventional CCTV systems. Thermal imaging can support heat-based detection, while visible-light cameras provide additional scene detail. Suitable integration depends on the selected camera models and recording platform.
12. How much does thermal camera installation cost in Abu Dhabi?
The price depends on the thermal camera model, resolution, lens, number of devices, installation complexity, cabling, networking, recording system and software requirements. Contact SOLO SOFT Solutions with your site details to discuss a project-specific quotation.
13. Does SOLO SOFT Solutions provide thermal camera maintenance?
SOLO SOFT Solutions offers thermal camera maintenance and technical support arrangements. Depending on the agreed scope, maintenance may include camera condition, image quality, device connectivity, recording, software and system configuration checks.
Request Thermal Camera Installation in Abu Dhabi
Choose a thermal camera solution based on your property’s monitoring requirements, operating environment and security objectives.
Whether you need fixed thermal perimeter monitoring, a bi-spectrum camera configuration or a system designed for selected industrial temperature-monitoring applications, SOLO SOFT Solutions can discuss your project requirements.
Contact our Abu Dhabi team to discuss your installation and request a quotation.
SOLO SOFT Solutions LLC
Address: Musaffah M-39, Abu Dhabi, United Arab Emirates
Phone: +971 50 777 0364
Email: info@solosoftsolutions.com
Website: https://solosoftsolutions.com/
