Physical Specifications

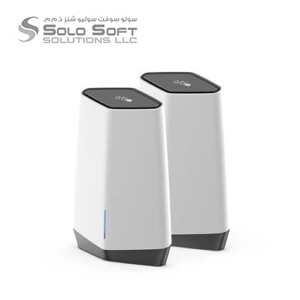

Orbi Pro WiFi 6 Router (SXR80)

• Dimensions: 6.8 × 3.3 × 9.7 in

• Weight: 2.06 lb

Orbi Pro WiFi 6 Satellite (SXS80)

• Dimensions: 6.8 × 3.3 × 9.7 in

• Weight: 2.06 lb (each)

Technical Specifications

Requirements for Orbi Pro WiFi 6

1. High-speed internet connection

2. Connection to an existing modem or gateway

3. Quick setup and customization through the local UI

WiFi Technology

• Total WiFi Speed: (2,400 + 2,400 + 1,200) Mbps†

• Simultaneous Tri-band WiFi

Radios:

• Radio 1: IEEE 802.11b/g/n/ax (2.4GHz) with 256QAM

• Radio 2: IEEE 802.11a/n/ac/ax (5GHz) with 1024QAM

• Radio 3: IEEE 802.11a/n/ac/ax (5GHz) with 1024QAM

Antennas:

• Eight (8) high-performance antennas with high-power amplifiers

MU-MIMO & OFDMA:

• Supports bi-directional MU-MIMO

• WiFi 6 throughput with OFDMA

• Optimized for simultaneous connections across multiple devices

TWT (Target Wake Time):

• Increases smartphone and device battery life

Beamforming:

• Implicit and explicit beamforming for both 2.4GHz and 5GHz bands

Ports & Connectivity

Link Aggregation Grouping (LAG)

• Router: Four (4) GbE LAN ports — two ports can form a LAG

• Satellite: One (1) 2.5GbE port + four (4) GbE ports — two ports can form a LAG

Router Ports (SXR80)

• One (1) Gigabit or 2.5 Gigabit WAN/LAN port

• Two (2) Gigabit Ethernet LAN ports (LAG optional)

• Two (2) additional Gigabit Ethernet LAN ports

Security & Network Management

• Four (4) dedicated SSID networks:

  • Administration

  • Employee devices

  • Guest WiFi

  • IoT devices

• Flexible VLAN configuration across all four SSIDs

• Default client isolation on Guest SSID (configurable on others)

• WPA/WPA2/WPA3 security support

Management & Monitoring

• Local Admin UI: Full configuration control and maintenance tools

• Insight App: Secure cloud-based remote monitoring

• Third-Party Support: Compatible with Domotz for network monitoring
