Physical Specifications

• Dimensions: 5.8 × 2.7 × 7.4 in (148 × 68 × 189 mm) each

• Weight: 1.06 lb (0.48 kg) each

• Compatibility:
  The Orbi Pro WiFi 6 Mini Dual-band AX1800 Router cannot pair with Orbi Home systems or Orbi Pro WiFi 5 satellites.

Technical Specifications

WiFi Performance

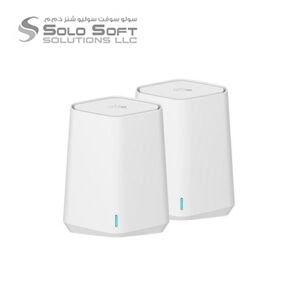

• Model: Orbi Pro WiFi 6 Mini Dual-band AX1800 Router & Satellite

• Speed: AX1800 (1,200 + 600 Mbps)†

• Simultaneous Dual-band WiFi:

  • Radio 1 (2.4GHz): IEEE 802.11b/g/n/ax with 256QAM

  • Radio 2 (5GHz): IEEE 802.11a/n/ac/ax with 1024QAM

Antennas & Enhancements

• Two high-performance antennas with high-power amplifiers

• Explicit Beamforming for both 2.4GHz and 5GHz

• Integrated Gigabit Smart Ethernet switch for business-grade networking

• Supports 802.1Q VLAN and Access Control

• MU-MIMO support for simultaneous multi-device streaming

Ethernet Ports

Orbi Pro WiFi 6 Mini Router

• 1 × Gigabit Ethernet WAN port

• 3 × Gigabit Ethernet LAN ports

Orbi Pro WiFi 6 Mini Satellite

• 4 × Gigabit Ethernet LAN ports

Security & Network Management

• Supports four separate SSID networks:

  • Admin devices

  • Employee devices

  • Guest devices (with Captive Portal)

  • IoT devices

• Guest WiFi is simple to configure and keeps visitors isolated from administrative devices

• Wireless security options: WPA/WPA2-PSK/WPA3-PSK, WPA-Enterprise

• Supports both wireless and wired VLAN setups
