Physical Specifications

• Dimensions: 6.7 × 2.9 × 8.8 in (170 × 75.6 × 224.5 mm) each

• Weight: 1.6 lb (0.72 kg) each

• Compatibility Note:
  The Orbi Pro WiFi 6 AX5400 Router is not compatible with satellites from any other Orbi or Orbi Pro systems.

Technical Specifications

WiFi Performance

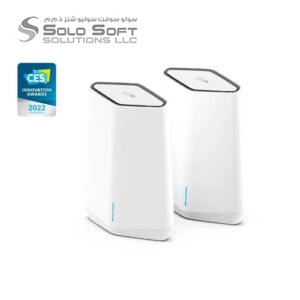

• Model: Orbi Pro WiFi 6 AX5400 Router & Satellite

• Speeds: Up to 5,400 Mbps (600 + 2,400 + 2,400 Mbps)†

• Tri-band WiFi:

  • Radio 1 (2.4GHz): IEEE 802.11b/g/n/ax with 256QAM

  • Radio 2 (5GHz Low): IEEE 802.11a/n/ac/ax with 1024QAM & 160MHz

  • Radio 3 (5GHz High): IEEE 802.11a/n/ac/ax with 1024QAM & 160MHz

Performance Enhancements

• Explicit Beamforming for stronger 2.4GHz & 5GHz connections

• Integrated Gigabit Smart Ethernet switch for business-grade networking

• Support for 802.1Q VLAN and Access Control

• MU-MIMO for simultaneous multi-device performance

Ethernet Ports

Orbi Pro WiFi 6 AX5400 Router

• 1 × Gigabit Ethernet WAN port

• 3 × Gigabit Ethernet LAN ports

Orbi Pro WiFi 6 AX5400 Satellite

• 4 × Gigabit Ethernet LAN ports

Security & Network Management

• Supports four (4) separate SSIDs, ideal for network segmentation:

  • Administration devices

  • Employee devices

  • Guest devices (with Captive Portal)

  • IoT devices

• Easy-to-configure guest WiFi with strict access isolation

• Guest devices blocked from administrative networks

• Security standards supported:

  • WPA/WPA2-PSK/WPA3-PSK

  • WPA-Enterprise

• Compatible with wired and wireless VLANs

• Includes 5 DHCP servers for segmented wired and wireless networks across 4 SSIDs
