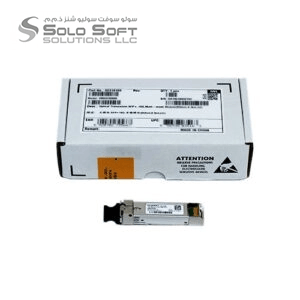

OSX010000 Optical Transceiver – Basic Information

• Module Name: OSX010000

• Part Number: 02318170

• Model: OSX010000

• Form Factor: SFP+

• Application Standard: 10GBASE-LR

• Connector Type: LC

• Optical Fiber Type: Single-mode Fiber (SMF)

• Operating Temperature: 0°C to 70°C (32°F to 158°F)

• Transmission Rate: 10 Gbit/s

• Target Transmission Distance: Single-mode fiber: 10 km

Transmitter Optical Characteristics:

• Center Wavelength: 1310 nm

• Maximum Tx Optical Power: 0.5 dBm

• Minimum Tx Optical Power: -8.2 dBm

• Minimum Extinction Ratio: 3.5 dB

Receiver Optical Characteristics:

• Rx Sensitivity: -12.6 dBm

• Overload Power: 0.5 dBm
