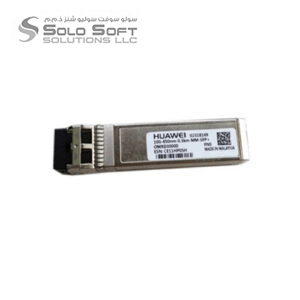

OMXD30000 Optical Transceiver – Basic Information

• Module Name: OMXD30000

• Part Number: 02318169

• Model: OMXD30000

• Form Factor: SFP+

• Application Standard: 10GBASE-SR

• Connector Type: LC

• Optical Fiber Type: Multimode Fiber (MMF)

• Operating Temperature: 0°C to 70°C (32°F to 158°F)

• Transmission Rate: 10 Gbit/s

Target Transmission Distance (km):

• Multimode fiber (160 MHz·km, 62.5 μm): 0.026 km

• Multimode fiber (OM1): 0.033 km

• Multimode fiber (400 MHz·km, 50 μm): 0.066 km

• Multimode fiber (OM2): 0.082 km

• Multimode fiber (OM3): 0.3 km

• Multimode fiber (OM4): 0.4 km

Transmitter Optical Characteristics:

• Center Wavelength: 850 nm

• Maximum Tx Optical Power: -1.0 dBm

• Minimum Tx Optical Power: -7.3 dBm

• Minimum Extinction Ratio: 3.0 dB

Receiver Optical Characteristics:

• Rx Sensitivity: -11.1 dBm

• Overload Power: -1.0 dBm
