Features & Benefits

Compact SFP+ form factor – industry’s smallest 10G design for maximum port density.

Hot-swappable – install or replace without powering down the system.

Supports Cisco’s “pay-as-you-populate” model for scalable deployment.

Digital Optical Monitoring (DOM/DDMI) for advanced diagnostics.

Interoperable with 10GBASE XENPAK, X2, and XFP interfaces on the same link.

Cisco quality identification (ID) feature ensures compatibility and authenticity.

Backed by Cisco’s high-performance standards.

Technical Specifications

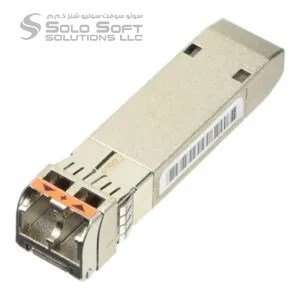

Model Number: SFP-10G-LRM

Description: Cisco 10GBASE-LRM SFP+ transceiver module for MMF & SMF

Device Type: Plug-in module

Form Factor: SFP+

Data Rate: 10.3 Gbps

Wavelength: 1310 nm

Power Budget: 3.4 dB

Max Reach Distance: 220m (MMF), 300m (SMF G.652)

Transmit Power: -6.5 ~ 0.5 dBm

Receiver Sensitivity: -12 dBm

Power Supply Voltage: 3.3V

Power Consumption: 1W

Connector: Dual LC

Fiber Type: MMF / SMF

Operating Temperature: 0°C to 70°C

DDMI: Supported

Certifications: CE, FCC, TUV, UL, RoHS, ISO9000:2001

Applications

Enterprise data centres

Metro Ethernet & campus networks

Short to medium-distance 10G Ethernet links

High-performance computing clusters
