Key Features & Benefits

Seamless Coverage – Expands Wi-Fi to hard-to-reach areas when paired with Cisco Business APs.

Wave 2 MU-MIMO Technology – Supports multiple simultaneous clients for improved efficiency.

Mesh Networking – Mix and match with Cisco Business APs and extenders for full coverage.

Two-Step Setup – Simple deployment via QR code and Cisco Business Mobile App.

Enterprise-Grade Security – WPA2/WPA3, 802.1X, and RADIUS authentication keep your network safe.

High Capacity – Supports up to 400 wireless clients (200 per radio).

Wall Plug Design – Compact form factor with minimal footprint, ideal for small offices.

Specifications

General

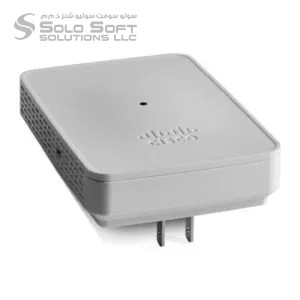

Device Type: Wi-Fi Mesh Extender (Wall Outlet)

Form Factor: External (plug-in)

Dimensions: 8.25 × 11.4 × 1.9 cm

Weight: 280 g

Localisation: Europe

Performance & Networking

Wireless Standards: IEEE 802.11a/b/g/n/ac Wave 2

Frequency Bands: 2.4 GHz (up to 144 Mbps), 5 GHz (up to 867 Mbps)

MU-MIMO: 2×2 with two spatial streams

Max Wireless Clients: 200 per radio (400 total)

Features: DFS support, seamless roaming, WMM (Wi-Fi Multimedia), mesh networking

Processor & Memory

CPU: 710 MHz

RAM: 512 MB

Flash: 128 MB

Security & Authentication

Protocols: WPA2, WPA3, AES, TLS, PEAP, TTLS, EAP, EAP-FAST

Authentication: RADIUS, MS-CHAP v.2, 802.1X

AAA (Authentication, Authorization, Accounting) supported

Compliance & Certifications

Standards: IEEE 802.11b/a/g/n/ac Wave 2, IEEE 802.3af (PoE)

Certifications: FCC, CE, UL, IEC, ICES-003, VCCI, RSS-247, EN 301 489-1/17, and more

Power

Input Voltage: 120–230 V AC, 50/60 Hz

Power Consumption: 8.5 W

Warranty

Cisco Limited Lifetime Warranty (hardware replacement)

Environmental

Operating Temperature: 0 – 50 °C

Operating Humidity: 10% – 90% (non-condensing)
